      LePure


      Storage Bags

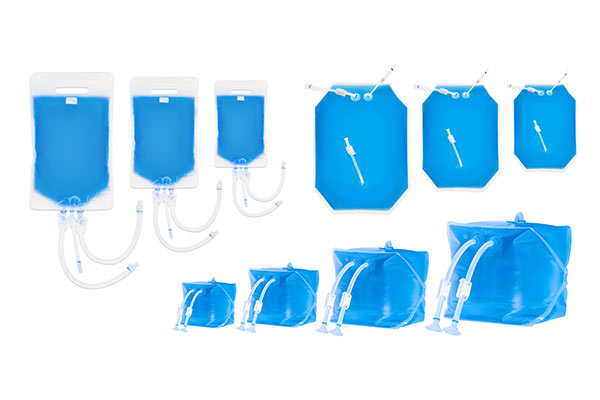

      Benefiting from LeKrius Film, LeKrius Storage Bags offer stability and convenience for cell culture growing. LeKrius Storage Bags Series provide 3 tpyes of bag shape: 2D / 2.5D and 3D shape, covering volume specifications from 5mL to 2500L.

      Datasheet-LeKrius_Storage_Bags.pdf
      Download
      Request A Quote
      Description

      Feature

      • Exclusive development: LeKrius film is completely independently developed and produced, with good physical strength, chemical compatibility and biocompatibility.
      • Transparent film: The membrane material is transparent, which is conducive to auxiliary process judgment and can meet the storage and transfer requirements of various feed liquids in the biopharmaceutical process.
      • Highly customization: The size, pipeline, joints and filters can be customized flexibly, suitable for various processes.
      • Good Universality: It can be matched with different support containers to meet the use requirements to the greatest extent.
      SPECIFICATION

      SPECIFICATION

      Testing StandardsTest ItemsTest Results
      ASTM-D6988Film thickness test (μm)Pass
      ASTM-882Tensile strength MD (MPa)Pass
      ASTM-882Tensile strength TD (MPa)Pass
      ASTM-F1306Puncture strength (N)Pass
      ASTM-D1709Falling dart impact (J)Pass
      ASTM-F392Kneading performance (pcs)Pass

      Ordering Information

      Ordering Information

      2D Storage Bags

      VolumeInlet TubingOutlet TubingSampling TubingProduct Number
      50mL1/8″*1/4″ L-Flex 30cm + Luer Female connector + Male luer Cap1/8″*1/4″ L-Flex 30cm + Luer Male connector + Female luer Cap/HP0050-1AK
      100mL1/8″*1/4″ L-Flex 30cm + Luer Female connector + Male luer Cap1/8″*1/4″ L-Flex 30cm + Luer Male connector + Female luer Cap/HP0100-1AK
      250mL1/4″*3/8″ L-Flex 30cm+MPC Female connector+Male luer Cap1/4″*3/8″ L-Flex 30cm+ Luer Male connector+Female luer Cap/HP0250-3AK
      500mL1/4″*3/8″ L-Flex 30cm+MPC Female connector+Male luer Cap1/4″*3/8″ L-Flex 30cm+ Luer Male connector+Female luer Cap/HP0500-3AK
      1L1/4″*3/8″ L-Flex 50cm+MPC FeMale connector+Male Cap1/4″*3/8″ L-Flex 50cm+MPC Male connector+Female Cap1/4″*3/8″Silicone Tubing 20cm+Needle-Free Sampling DeviceHP001-4AK
      2L1/4″*3/8″ L-Flex 50cm+MPC FeMale connector+Male Cap1/4″*3/8″ L-Flex 50cm+MPC Male connector+Female Cap1/4″*3/8″Silicone Tubing 20cm+Needle-Free Sampling DeviceHP002-4AK
      3L1/4″*3/8″ L-Flex 50cm+MPC FeMale connector+Male Cap1/4″*3/8″ L-Flex 50cm+MPC Male connector+Female Cap1/4″*3/8″Silicone Tubing 20cm+Needle-Free Sampling DeviceHP003-4AK
      5L3/8″*5/8″ L-Flex 50cm+MPC Female connector+Male luer Cap3/8″*5/8″ L-Flex 50cm+MPCMale connector+Female luer Cap1/4″*3/8″Silicone Tubing 20cm+Needle-Free Sampling DeviceHP005-5AK
      10L3/8″*5/8″ L-Flex 50cm+MPC Female connector+Male luer Cap3/8″*5/8″ L-Flex 50cm+MPCMale connector+Female luer Cap1/4″*3/8″Silicone Tubing 20cm+Needle-Free Sampling DeviceHP010-5AK
      20L3/8″*5/8″ L-Flex 50cm+MPC Female connector+Male luer Cap3/8″*5/8″ L-Flex 50cm+MPCMale connector+Female luer Cap1/4″*3/8″Silicone Tubing 20cm+Needle-Free Sampling DeviceHP020-5AK
      30L3/8″*5/8″ L-Flex 50cm+MPC Female connector+Male luer Cap3/8″*5/8″ L-Flex 50cm+MPCMale connector+Female luer Cap1/4″*3/8″Silicone Tubing 20cm+Needle-Free Sampling DeviceHP030-5AK
      50L3/8″*5/8″ L-Flex 50cm+MPC Female connector+Male luer Cap3/8″*5/8″ L-Flex 50cm+MPCMale connector+Female luer Cap1/4″*3/8″Silicone Tubing 20cm+Needle-Free Sampling DeviceHP050-5AK
      1L3/8″*5/8″ L-Flex 60cm+Stopper3/8″*5/8″L-Flex 60cm+Stopper1/4″*3/8″ L-Flex 20cm+Needle-Free Sampling DeviceHP001-5DK
      2L3/8″*5/8″ L-Flex 60cm+Stopper3/8″*5/8″L-Flex 60cm+Stopper1/4″*3/8″ L-Flex 20cm+Needle-Free Sampling DeviceHP002-5DK
      5L3/8″*5/8″ L-Flex 60cm+Stopper3/8″*5/8″L-Flex 60cm+Stopper1/4″*3/8″ L-Flex 20cm+Needle-Free Sampling DeviceHP005-5DK
      10L3/8″*5/8″ L-Flex 60cm+Stopper3/8″*5/8″L-Flex 60cm+Stopper1/4″*3/8″ L-Flex 20cm+Needle-Free Sampling DeviceHP010-5DK
      20L3/8″*5/8″ L-Flex 60cm+Stopper3/8″*5/8″L-Flex 60cm+Stopper1/4″*3/8″ L-Flex 20cm+Needle-Free Sampling DeviceHP020-5DK
      50L3/8″*5/8″ L-Flex 60cm+Stopper3/8″*5/8″L-Flex 60cm+Stopper1/4″*3/8″ L-Flex 20cm+Needle-Free Sampling DeviceHP050-5DK
      1L3/8″*5/8″L-Flex50cm+Filters（P1S5DS5THM）+3/8”*5/8” Silicone Tubing 30cm+MPC Female Connector+Male Cap3/8″*5/8″ L-Flex 50cm+Stopper1/4″*3/8″ L-Flex 20cm+Needle-Free Sampling DeviceHP001-5BK
      2L3/8″*5/8″L-Flex50cm+Filters（P1S5DS5THM）+3/8”*5/8” Silicone Tubing 30cm+MPC Female Connector+Male Cap3/8″*5/8″ L-Flex 50cm+Stopper1/4″*3/8″ L-Flex 20cm+Needle-Free Sampling DeviceHP002-5BK
      5L3/8″*5/8″L-Flex50cm+Filters（P1S5DS5THM）+3/8”*5/8” Silicone Tubing 30cm+MPC Female Connector+Male Cap3/8″*5/8″ L-Flex 50cm+Stopper1/4″*3/8″ L-Flex 20cm+Needle-Free Sampling DeviceHP005-5BK
      10L3/8″*5/8″L-Flex50cm+Filters（P1S5DS5THM）+3/8”*5/8” Silicone Tubing 30cm+MPC Female Connector+Male Cap3/8″*5/8″ L-Flex 50cm+Stopper1/4″*3/8″ L-Flex 20cm+Needle-Free Sampling DeviceHP010-5BK
      20L3/8″*5/8″L-Flex50cm+Filters（P1S5DS5THM）+3/8”*5/8” Silicone Tubing 30cm+MPC Female Connector+Male Cap3/8″*5/8″ L-Flex 50cm+Stopper1/4″*3/8″ L-Flex 20cm+Needle-Free Sampling DeviceHP020-5BK
      50L3/8″*5/8″L-Flex50cm+Filters（P1S5DS5THM）+3/8”*5/8” Silicone Tubing 30cm+MPC Female Connector+Male Cap3/8″*5/8″ L-Flex 50cm+Stopper1/4″*3/8″ L-Flex 20cm+Needle-Free Sampling DeviceHP050-5BK
      1L3/8″*5/8″ Silicone Tubing 50cm+MPC Female Connector+Male Cap3/8″*5/8″ Silicone Tubing 50cm+MPC Male Connector+Female Cap1/4″*3/8″ Silicone Tubing 15cm+Luer Sampling HP001-5EK
      2L3/8″*5/8″ Silicone Tubing 50cm+MPC Female Connector+Male Cap3/8″*5/8″ Silicone Tubing 50cm+MPC Male Connector+Female Cap1/4″*3/8″ Silicone Tubing 15cm+Luer SamplingHP002-5EK
      5L3/8″*5/8″ Silicone Tubing 50cm+MPC Female Connector+Male Cap3/8″*5/8″ Silicone Tubing 50cm+MPC Male Connector+Female Cap1/4″*3/8″ Silicone Tubing 15cm+Luer SamplingHP005-5EK
      10L3/8″*5/8″ Silicone Tubing 50cm+MPC Female Connector+Male Cap3/8″*5/8″ Silicone Tubing 50cm+MPC Male Connector+Female Cap1/4″*3/8″ Silicone Tubing 15cm+Luer SamplingHP010-5EK
      20L3/8″*5/8″ Silicone Tubing 50cm+MPC Female Connector+Male Cap3/8″*5/8″ Silicone Tubing 50cm+MPC Male Connector+Female Cap1/4″*3/8″ Silicone Tubing 15cm+Luer SamplingHP020-5EK
      50L3/8″*5/8″ Silicone Tubing 50cm+MPC Female Connector+Male Cap3/8″*5/8″ Silicone Tubing 50cm+MPC Male Connector+Female Cap1/4″*3/8″ Silicone Tubing 15cm+Luer SamplingHP050-5EK
      1L3/8″*5/8″ Silicone Tubing 50cm (with a breakable loop) + Filter (P1S5DS5THM) + 3/8″*5/8″ Silicone Tubing 30cm + MPC Female Connector + Male Cap3/8″*5/8″ Silicone Tubing 50cm + TC25 + Tubing Clamp and Sealing Plate1/4″*3/8″ Silicone Tubing 20cm + Luer SamplingHP001-5CK
      2L3/8″*5/8″ Silicone Tubing 50cm (with a breakable loop) + Filter (P1S5DS5THM) + 3/8″*5/8″ Silicone Tubing 30cm + MPC Female Connector + Male Cap3/8″*5/8″ Silicone Tubing 50cm + TC25 + Tubing Clamp and Sealing Plate1/4″*3/8″ Silicone Tubing 20cm + Luer SamplingHP002-5CK
      5L3/8″*5/8″ Silicone Tubing 50cm (with a breakable loop) + Filter (P1S5DS5THM) + 3/8″*5/8″ Silicone Tubing 30cm + MPC Female Connector + Male Cap3/8″*5/8″ Silicone Tubing 50cm + TC25 + Tubing Clamp and Sealing Plate1/4″*3/8″ Silicone Tubing 20cm + Luer SamplingHP005-5CK
      10L3/8″*5/8″ Silicone Tubing 50cm (with a breakable loop) + Filter (P1S5DS5THM) + 3/8″*5/8″ Silicone Tubing 30cm + MPC Female Connector + Male Cap3/8″*5/8″ Silicone Tubing 50cm + TC25 + Tubing Clamp and Sealing Plate1/4″*3/8″ Silicone Tubing 20cm + Luer SamplingHP010-5CK
      20L3/8″*5/8″ Silicone Tubing 50cm (with a breakable loop) + Filter (P1S5DS5THM) + 3/8″*5/8″ Silicone Tubing 30cm + MPC Female Connector + Male Cap3/8″*5/8″ Silicone Tubing 50cm + TC25 + Tubing Clamp and Sealing Plate1/4″*3/8″ Silicone Tubing 20cm + Luer SamplingHP020-5CK
      50L3/8″*5/8″ Silicone Tubing 50cm (with a breakable loop) + Filter (P1S5DS5THM) + 3/8″*5/8″ Silicone Tubing 30cm + MPC Female Connector + Male Cap3/8″*5/8″ Silicone Tubing 50cm + TC25 + Tubing Clamp and Sealing Plate1/4″*3/8″ Silicone Tubing 20cm + Luer SamplingHP050-5CK

      2.5D Storage Bags

      VolumeInlet TubeOutlet TubeSampling TubeProduct Number
      57L3/8″*5/8″ Silicone Tubing 150cm + TC50 + Hose Clamp and Sealing Plate3/8″*5/8″ Silicone Tubing 150cm + TC50 + Hose Clamp and Sealing Plate1/8″*1/4″ Silicone Tubing 30cm + Needle-Free SamplerFT057-7K
      113L3/8″*5/8″ Silicone Tubing 150cm + TC51 + Hose Clamp and Sealing Plate3/8″*5/8″ Silicone Tubing 150cm + TC51 + Hose Clamp and Sealing Plate1/8″*1/4″ Silicone Tubing 30cm + Needle-Free SamplerFT113-7K
      208L3/8″*5/8″ Silicone Tubing 150cm + TC52 + Hose Clamp and Sealing Plate3/8″*5/8″ Silicone Tubing 150cm + TC52 + Hose Clamp and Sealing Plate1/8″*1/4″ Silicone Tubing 31cm + Needle-Free SamplerFT208-7K
      303L1/2″*3/4″Silicone Tubing 150cm + TC50 + Hose Clamp and Sealing Plate1/2″*3/4″Silicone Tubing 150cm + TC50 + Hose Clamp and Sealing Plate1/8″*1/4″ Silicone Tubing 32cm + Needle-Free SamplerFT303-7K
      378L1/2″*3/4″Silicone Tubing 150cm + TC51 + Hose Clamp and Sealing Plate1/2″*3/4″Silicone Tubing 150cm + TC51 + Hose Clamp and Sealing Plate1/8″*1/4″ Silicone Tubing 33cm + Needle-Free SamplerFT378-7K
      57L3/8″*5/8″ L-Flex 150cm+MPC Male Connector + Female Cap3/8″*5/8″L-Flex 150cm+MPC Male Connector + Female Cap1/8″*1/4″ Silicone Tubing 34cm + Needle-Free SamplerFT057-8K
      113L3/8″*5/8″ L-Flex 151cm+MPC Male Connector + Female Cap3/8″*5/8″L-Flex 151cm+MPC Male Connector + Female Cap1/8″*1/4″ Silicone Tubing 35cm + Needle-Free SamplerFT113-8K
      208L3/8″*5/8″ L-Flex 152cm+MPC Male Connector + Female Cap3/8″*5/8″L-Flex 152cm+MPC Male Connector + Female Cap1/8″*1/4″ Silicone Tubing 36cm + Needle-Free SamplerFT208-8K
      303L1/2″*3/4″ L-Flex 150cm+MPX Male Connector + Female Cap1/2″*3/4″ L-Flex 150cm+MPX Male Connector + Female Cap1/8″*1/4″ Silicone Tubing 37cm + Needle-Free SamplerFT303-8K
      378L1/2″*3/4″ L-Flex 151cm+MPX Male Connector + Female Cap1/2″*3/4″ L-Flex 151cm+MPX Male Connector + Female Cap1/8″*1/4″ Silicone Tubing 38cm + Needle-Free SamplerFT378-8K

      3D Storage Bags

      VolumeInlet TubingOutlet TubingSampling TubingProduct Number
      250L3/8″*5/8″ Silicone Tubing 150cm + TC50 + Hose Clamp and Sealing Plate1/2″*3/4″Silicone Tubing 150cm + TC50 + Hose Clamp and Sealing Plate1/8″*1/4″ Silicone Tubing 30cm + Needle-Free SamplerFD250-7K
      500L3/8″*5/8″Silicone Tubing 150cm + TC50 + Hose Clamp and Sealing Plate1/2″*3/4″ Silicone Tubing 150cm + TC50 + Hose Clamp and Sealing Plate1/8″*1/4″ Silicone Tubing 31cm + Needle-Free SamplerFD500-7K
      1000L3/8″*5/8″Silicone Tubing 150cm + TC50 + Hose Clamp and Sealing Plate1/2″*3/4″Silicone Tubing 150cm + TC50 + Hose Clamp and Sealing Plate1/8″*1/4″ Silicone Tubing 32cm + Needle-Free SamplerFD1000-7K
      250L3/8″*5/8″Silicone Tubing 150cm + MPC Male Connector + Female Cap3/8″*5/8″Silicone Tubing 150cm + MPC Male Connector + Female Cap1/8″*1/4″Silicone Tubing 30cm + Needle-Free SamplerFD250-8K
      500L3/8″*5/8″Silicone Tubing 150cm + MPC Male Connector + Female Cap3/8″*5/8″Silicone Tubing 150cm + MPC Male Connector + Female Cap1/8″*1/4″Silicone Tubing 31cm + Needle-Free SamplerFD500-8K
      1000L3/8″*5/8″Silicone Tubing 150cm + MPC Male Connector + Female Cap3/8″*5/8″Silicone Tubing 150cm + MPC Male Connector + Female Cap1/8″*1/4″Silicone Tubing 32cm + Needle-Free SamplerFD1000-8K
      100L1/2″*3/4″L-Flex 60cm+Stopper1/2″*3/4″Silicone Tubing50cm+1/2″*3/4″L-Flex 60cm+Stopper1/4″*3/8″Silicone Tubing6cm+1/8″*1/4″ L-Flex 20cm+Needle-Free SamplerFD100-11K
      200L1/2″*3/4″L-Flex 60cm+Stopper1/2″*3/4″Silicone Tubing50cm+1/2″*3/4″L-Flex 61cm+Stopper1/4″*3/8″Silicone Tubing6cm+1/8″*1/4″ L-Flex 20cm+Needle-Free SamplerFD250-11K
      250L1/2″*3/4″L-Flex 60cm+Stopper1/2″*3/4″Silicone Tubing50cm+1/2″*3/4″L-Flex 62cm+Stopper1/4″*3/8″Silicone Tubing6cm+1/8″*1/4″ L-Flex 20cm+Needle-Free SamplerFD250-11K
      500L1/2″*3/4″Silicone Tubing100cm+1/2″*3/4″ L-Flex 60cm+Stopper1/2″*3/4″Silicone Tubing100cm+1/2″*3/4″ L-Flex 60cm+Stopper1/4″*3/8″Silicone Tubing6cm+1/8″*1/4″ L-Flex 20cm+Needle-Free SamplerFD500-11K
      1000L1/2″*3/4″Silicone Tubing100cm+1/2″*3/4″ L-Flex 60cm+Stopper1/2″*3/4″Silicone Tubing100cm+1/2″*3/4″ L-Flex 60cm+Stopper1/4″*3/8″Silicone Tubing6cm+1/8″*1/4″ L-Flex 20cm+Needle-Free SamplerFD1000-11K
      100L1/2″*3/4″ L-Flex 100cm+Filter (P1S5D05THM) + 1/2″*3/4″ Silicone Tubing 50cm + MPX Female Connector + Male Cap1/2″*3/4″Silicone Tubing 100cm + 1/2″*3/4″ L-Flex 50cm + Tube Stopper1/4″*3/8″ Silicone Tubing 6cm + 1/8″*1/4″ L-Flex 20cm + Needle-Free SamplerFD100-9K
      200L1/2″*3/4″ L-Flex 100cm+Filter (P1S5D05THM) + 1/2″*3/4″ Silicone Tubing 50cm + MPX Female Connector + Male Cap1/2″*3/4″Silicone Tubing 100cm + 1/2″*3/4″ L-Flex 50cm + Tube Stopper1/4″*3/8″ Silicone Tubing 6cm + 1/8″*1/4″ L-Flex 20cm + Needle-Free SamplerFD250-9K
      250L1/2″*3/4″ L-Flex 100cm+Filter (P1S5D05THM) + 1/2″*3/4″ Silicone Tubing 50cm + MPX Female Connector + Male Cap1/2″*3/4″Silicone Tubing 100cm + 1/2″*3/4″ L-Flex 50cm + Tube Stopper1/4″*3/8″ Silicone Tubing 6cm + 1/8″*1/4″ L-Flex 20cm + Needle-Free SamplerFD250-9K
      500L1/2″*3/4″ L-Flex 100cm+Filter (P1S5D20TBM) + 1/2″*3/4″ Silicone Tubing 50cm + MPX Female Connector + Male Cap1/2″*3/4″Silicone Tubing 100cm + 1/2″*3/4″ L-Flex 50cm + Tube Stopper1/4″*3/8″ Silicone Tubing 6cm + 1/8″*1/4″ L-Flex 20cm + Needle-Free SamplerFD500-9K
      1000L1/2″*3/4″ L-Flex 100cm+Filter (P1S5D20TBM) + 1/2″*3/4″ Silicone Tubing 50cm + MPX Female Connector + Male Cap1/2″*3/4″Silicone Tubing 100cm + 1/2″*3/4″ L-Flex 50cm + Tube Stopper1/4″*3/8″ Silicone Tubing 6cm + 1/8″*1/4″ L-Flex 20cm + Needle-Free SamplerFD1000-9K
      100LSilicone Tubing 150cm + MPX Female Connector + Male CapSilicone Tubing 150cm + TC25 + Hose Clamp and Sealing Plate1/8″*1/4″ Silicone Tubing 15cm + Luer SamplingFD100-12K
      200LSilicone Tubing 150cm + MPX Female Connector + Male CapSilicone Tubing 150cm + TC25 + Hose Clamp and Sealing Plate1/8″*1/4″ Silicone Tubing 15cm + Luer SamplingFD200-12K
      250LSilicone Tubing 150cm + MPX Female Connector + Male CapSilicone Tubing 150cm + TC25 + Hose Clamp and Sealing Plate1/8″*1/4″ Silicone Tubing 15cm + Luer SamplingFD250-12K
      500LSilicone Tubing 150cm + MPX Female Connector + Male CapSilicone Tubing 150cm + TC25 + Hose Clamp and Sealing Plate1/8″*1/4″ Silicone Tubing 15cm + Luer SamplingFD500-12K
      1000LSilicone Tubing 150cm + MPX Female Connector + Male CapSilicone Tubing 150cm + TC25 + Hose Clamp and Sealing Plate1/8″*1/4″ Silicone Tubing 15cm + Luer SamplingFD1000-12K
      100L1/2″*3/4″Silicone Tubing 50cm (with a breakable loop) + Filter (P1S5D04THM) + 1/2″*3/4″ Silicone Tubing 100cm + MPX Female Connector + Male Cap3/8″*5/8″Silicone Tubing 150cm + TC25 + Hose Clamp and Sealing Plate1/8″*1/4″ Silicone Tubing 20cm + Luer SamplingFD100-10K
      200L1/2″*3/4″Silicone Tubing 50cm (with a breakable loop) + Filter (P1S5D04THM) + 1/2″*3/4″ Silicone Tubing 101cm + MPX Female Connector + Male Cap3/8″*5/8″Silicone Tubing 150cm + TC25 + Hose Clamp and Sealing Plate1/8″*1/4″ Silicone Tubing 20cm + Luer SamplingFD250-10K
      250L1/2″*3/4″Silicone Tubing 50cm (with a breakable loop) + Filter (P1S5D04THM) + 1/2″*3/4″ Silicone Tubing 102cm + MPX Female Connector + Male Cap3/8″*5/8″Silicone Tubing 150cm + TC25 + Hose Clamp and Sealing Plate1/8″*1/4″ Silicone Tubing 20cm + Luer SamplingFD250-10K
      500L1/2″*3/4″Silicone Tubing 50cm (with a breakable loop) + Filter (P1S5D10THM) + 1/2″*3/4″ Silicone Tubing 100cm + MPX Female Connector + Male Cap1/2″*3/4″Silicone Tubing 150cm + TC25 + Hose Clamp and Sealing Plate1/8″*1/4″ Silicone Tubing 20cm + Luer SamplingFD500-10K
      1000L1/2″*3/4″Silicone Tubing 50cm (with a breakable loop) + Filter (P1S5D10THM) + 1/2″*3/4″ Silicone Tubing 101cm + MPX Female Connector + Male Cap1/2″*3/4″Silicone Tubing 150cm + TC25 + Hose Clamp and Sealing Plate1/8″*1/4″ Silicone Tubing 20cm + Luer SamplingFD1000-10K
