Features
Application
- For liquid transfer in R&D laboratories
BS301E Basic speed regulating peristaltic pump
The BS301E is a basic speed regulating peristaltic pump with speed from 0.1rpm to
300rpm and has features of small size, low noise, can adjust the direction of operation
and so on.
Mainly used in R & D laboratory under the continuous transmission of material transfer. Supports various external control modes such as RS485MODBUS communication protocol.
Description
SPECIFICATION
SPECIFICATION
Technical parameter
| Drive model | BS151C |
| Max Speed | 150 rpm (reversible) |
| Max Flow | 140 mL/min |
| Speed resolution | 0.1 rpm |
| Operating mode | Push button to adjust |
| Display method | Four-digit LED display |
| Power adapter output | DC24V/2A |
| External control method | Analogue linear speed control (0-10V, 4-20mA), switching start/stop and direction control RS485 serial communication |
| Ambient temperature | (-10～80)℃,relative humidity≤85% |
| Drive size | 173.5 X 142 X 118(mm) |
| Protection level | IP31 |
Pump head flow parameter table
| Model | Tube | ID（mm） | Wall thickness（mm） | Max low（mL/min） | Max speed（rpm） |
|---|---|---|---|---|---|
| LP152B | 13# | 0.8 | 1.6 | 0.003-4 | 0.1-150 |
| LP152B | 14# | 1.6 | 1.6 | 0.013-19 | 0.1-150 |
| LP152B | 19# | 2.4 | 1.6 | 0.030-45 | 0.1-150 |
| LP152B | 16# | 3.1 | 1.6 | 0.046-69 | 0.1-150 |
| LP152B | 25# | 4.8 | 1.6 | 0.090-140 | 0.1-150 |

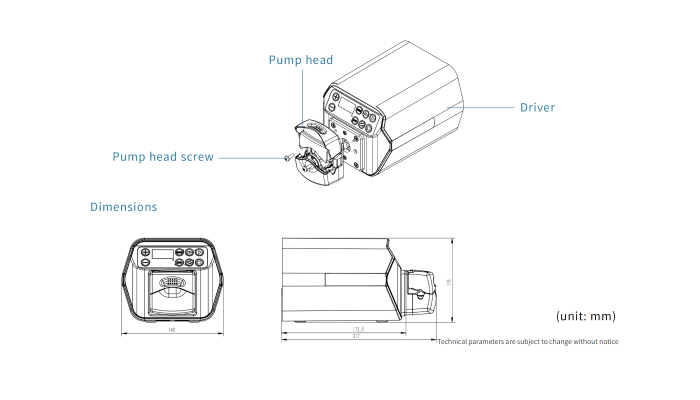

Schematic diagram of structure and function
